Prodotti e Sistemi per l’isolamento termico ed acustico

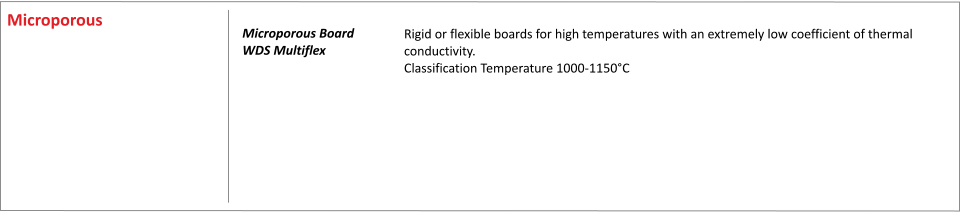

Rigid or flexible boards for high temperatures with an extremely low coefficient of thermal conductivity. Classification Temperature 1000-1150°C Microporous Board WDS Multiflex Microporous M.S.P. INSULATION S.r.l. | Via Sandro Pertini, 664 - 21050 Marnate (VA) | tel.: +39 0331 539137 - fax: +39 0331 539851 | p.iva 06817900969 Microporous Board ST HT Classification Temperature, °C 1000 1000 1150 Density, kg/m3 230 240 260 Compressive Strength at 800°C, MPa 1,26 - - Cold Compressive Strength, MPa - 1-3 1-3 Permanent Linear Shrinkage, % 800°C 1 1 - 1000°C 4,8 - 2 Thermal Conductivity, W/m.K 100°C 0,019 - - 200°C 0,02 0,025 0,028 300°C 0,022 - - 400°C 0,024 0,03 0,035 500°C 0,027 - - 600°C 0,031 0,038 0,043 800°C 0,04 0,049 0,06 Standard Sizes, mm 1000x600 Available Thicknesses, mm 10-15-20-25-30-40-50 Manufacturer WDS Multiflex 6-8-10-13 1000x500, 1200x600 Porextherm rev. 1/10/2015
